November 3, 2016

A Story about Cybernetics



  • observations of human/machine interactions during World War 2
    • computer-assisted anti-aircraft guns
    • inspired by / enabled systems analysis
  • from Greek kybernetike for "governance"
  • feedback loops: outputs connected to inputs
  • the foundational meetings were the Macy Conferences

The Macy Conferences

10th Macy Conference group photo

  • started in 1946, in New York City
  • early Computer Scientists (there were about 3 digital computers in existence)
    • John von Neumann, Norbert Wiener, Warren McCullouch, JCR Licklider, and many others
  • psychologists from the Gestalt school
    • Kurt Lewin, Wolfgang Köhler
    • "the whole is different from the sum of its parts"
    • attracted to systems/feedback loops

John von Neumann

John von Neumann

  • the original hacker?
    • simulated nuclear explosions in WW2
    • wrote code for ENIAC, UNIVAC, whatever
    • no programming language had been invented yet
  • pioneer of big data
  • von Neumann computer architecture
  • very active in academic society
    • at the right place at the right time
    • repeatedly
  • Influenced: Mandelbrot, Feynman, Wolfram

Kurt Lewin

Kurt Lewin

  • sometimes called the father of Social Psychology
  • Field Theory: \(B = f(P, S)\)
    • behaviour is a function of the person and their situation
    • people respond differently to different situations
      • our perceptions are part of the situation
  • Lewin presented Field Theory at the 2nd Macy Conference.
  • Influenced: Köhler, Bandura, Mischel, Shioda

Missed Connections

Reaching hands

  • Cybernetic movement rapidly collapsed
    • Artificial Intelligence partly took up the cause
    • Computer Science sortof dominated
    • Psychology, despite studying mind and brain, remained at a distance
  • Social Psychology and Personality Psychology split over Lewin's Theory
    • possibly for lack of a computational, analytic framework?
  • the students of von Neumann never connected with the students of Lewin


Ian Dennis Miller


  • PhD Candidate, Social Psychology
  • Psychology Department
  • Studying: Social Complexity and Collective Intelligence
    • agent-based modelling
    • experimental psychology
    • social network analysis
    • memes
  • Academic background
    • BS Cognitive Science, Carnegie Mellon University
    • Research Analyst, Berkeley
    • MA Psychology, University of Toronto

Structure of presentation

Voûte de l'église Saint-Séverin à Paris

  • buffet sample pack
  • back-to-back "lightning talks"
  • questions
    • please ask for clarification
    • please save theoretical questions until the end


Itinerary by Matthew Paris ca. 1250-1259

  • social psychology meets artificial intelligence
  • pub2: self publishing
  • memelab: meme sharing
  • topoli: twitter political memes
  • rofo: Rob Ford social network
  • urban legends: memes and network topologies

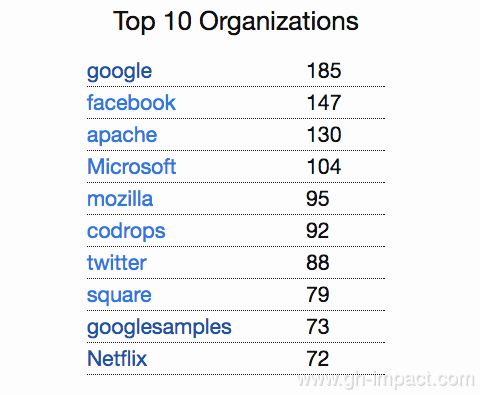

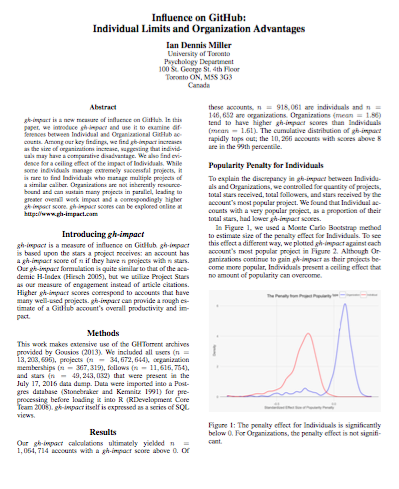

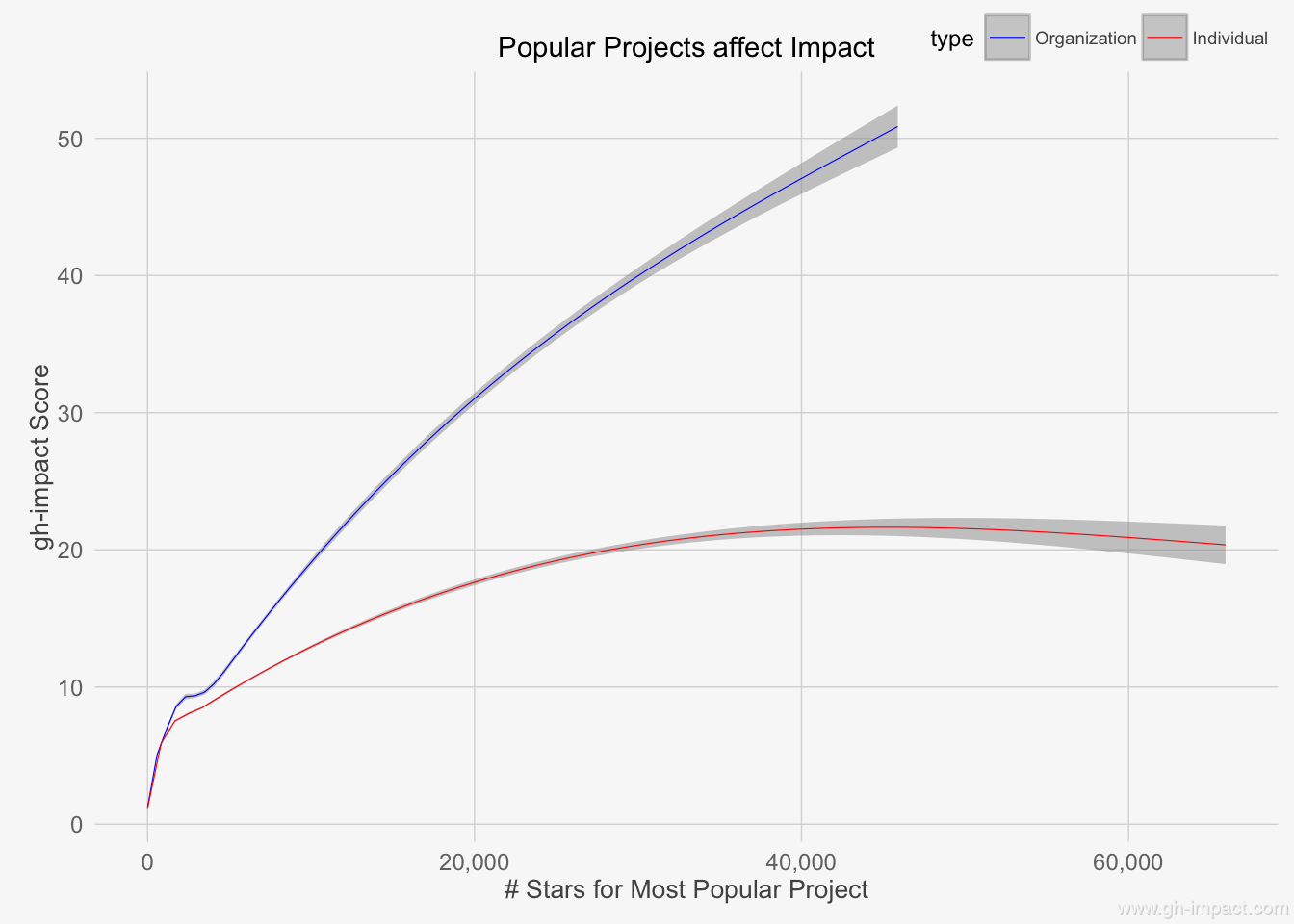

  • gh-impact: influence in open source software

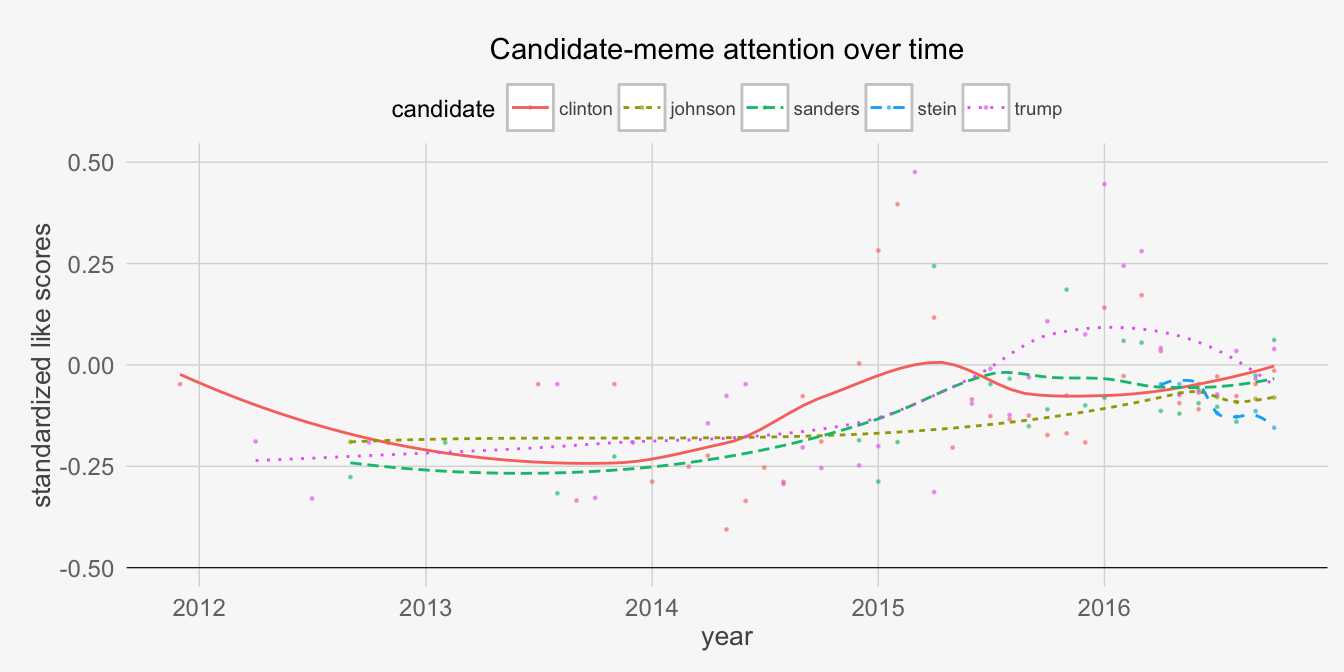

  • election-memes: 2016 US election memes

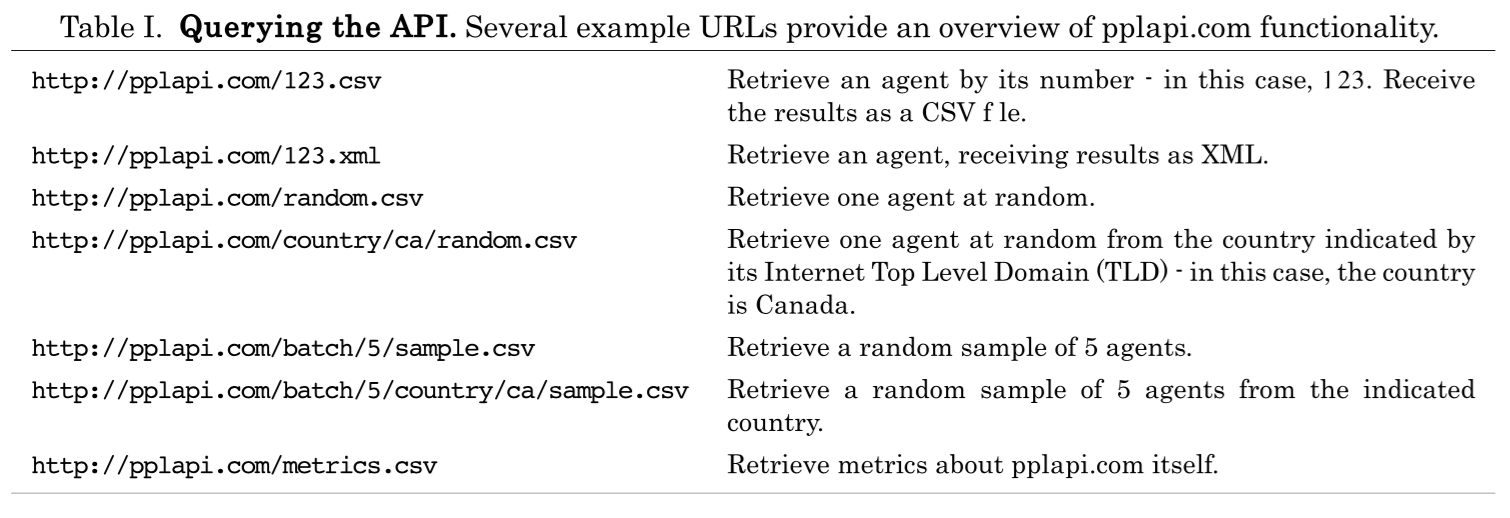

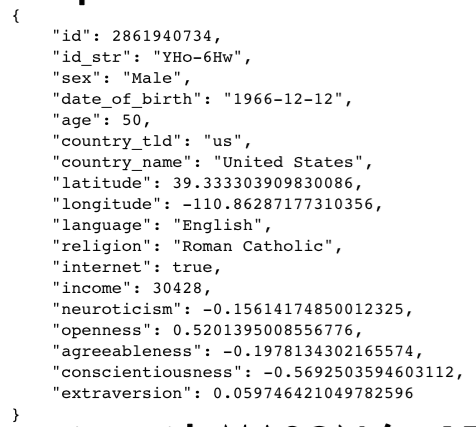

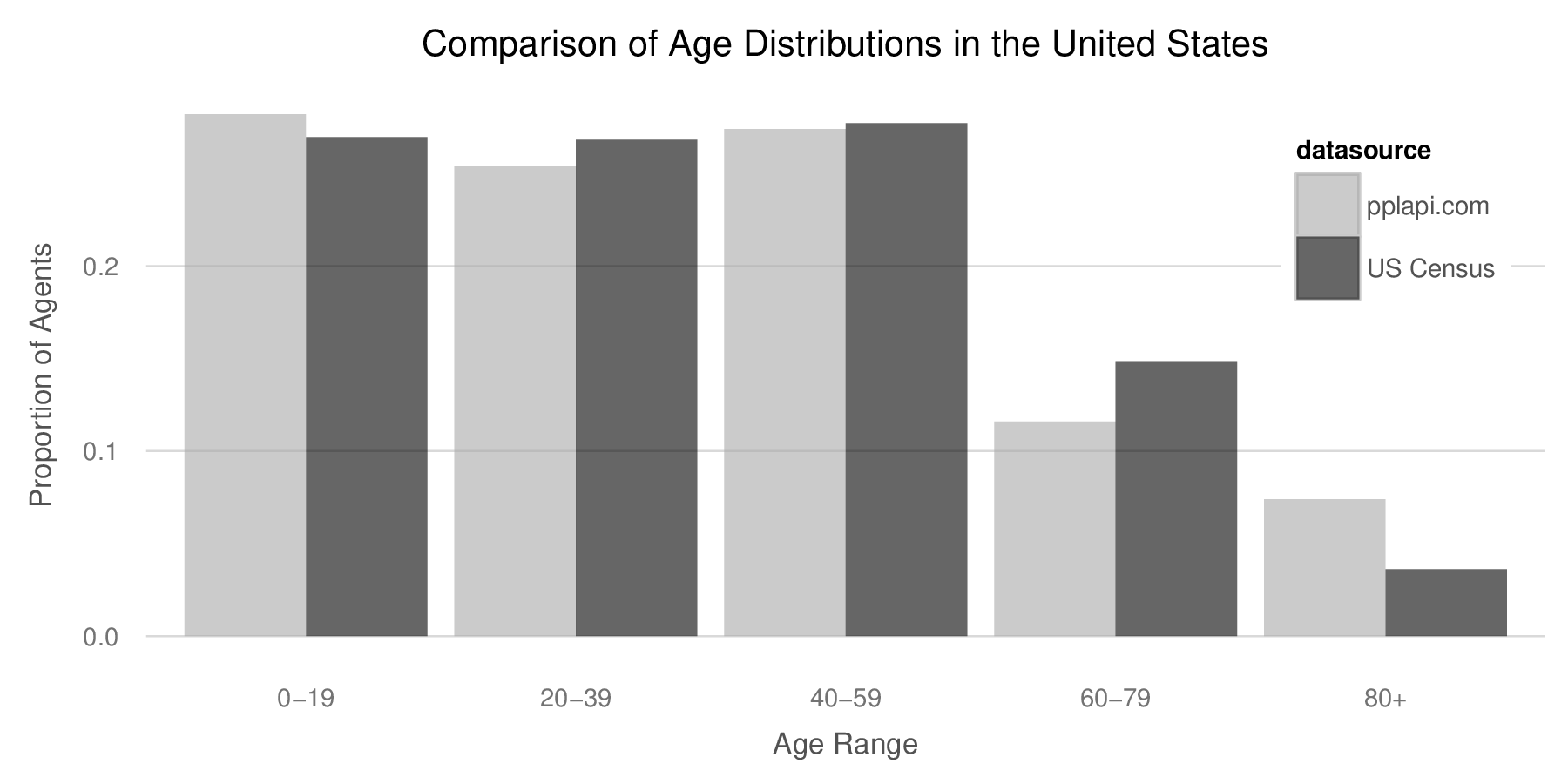

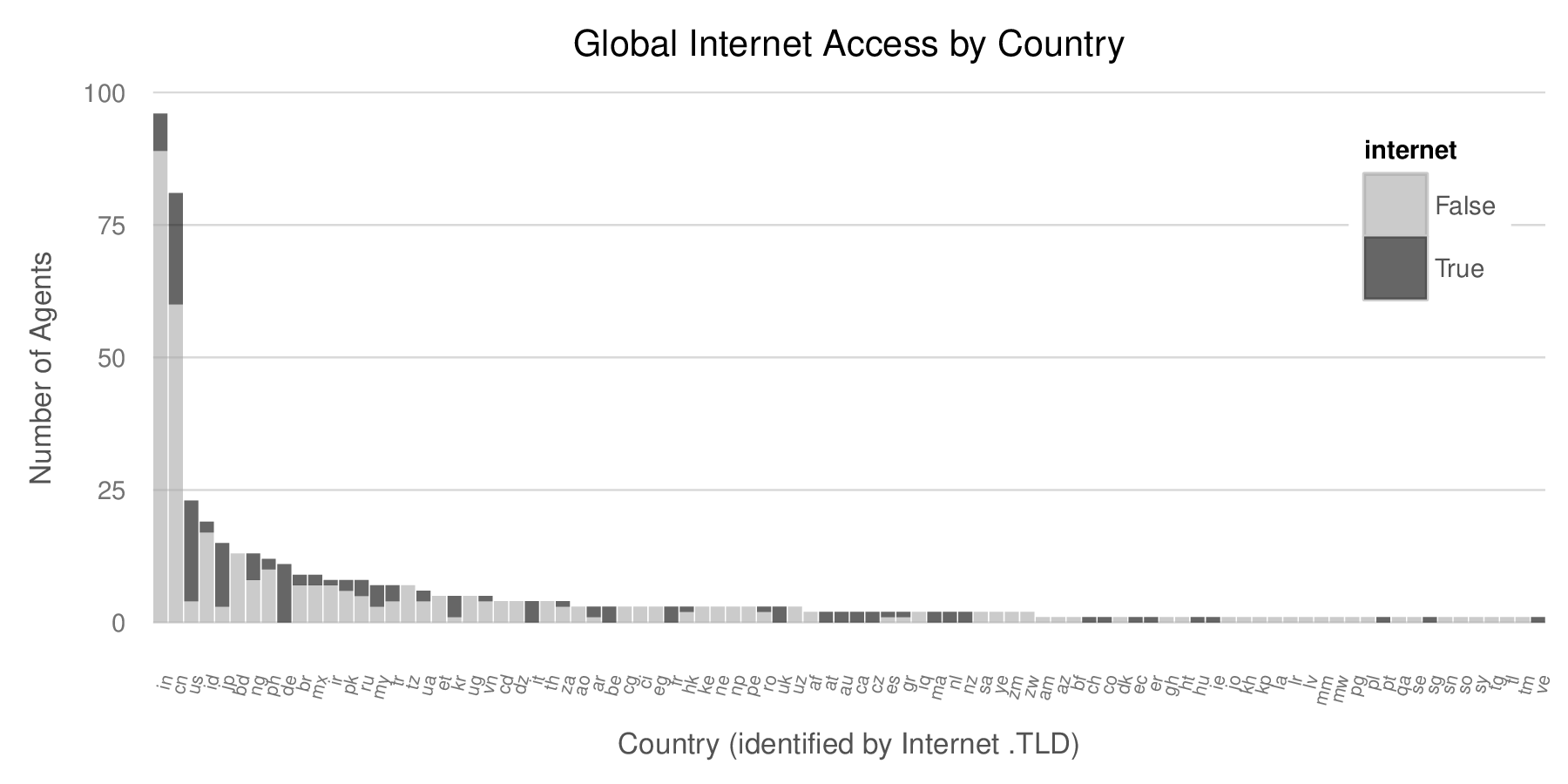

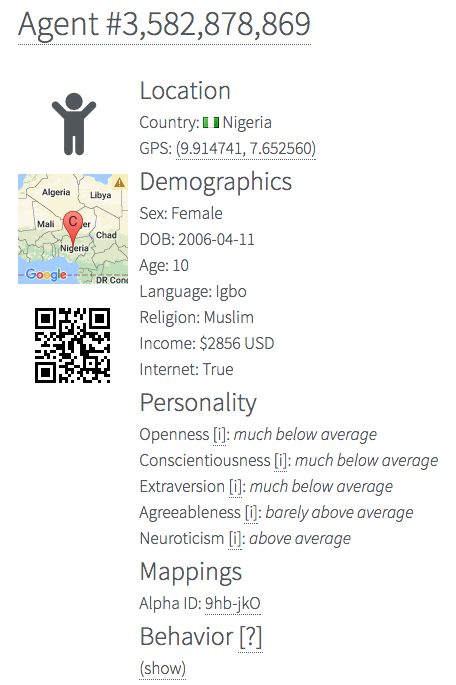

  • pplapi: human simulacrum as a service

Social Psychology meets Artificial Intelligence

diving into the academic social network

Academic collaboration network

10th Macy Conference group photo

  • Lewin and von Neumann meet at Macy 1 and 2:
    • March 1946
    • October 1946
  • consider that moment in time as a starting point
  • imagine spidering their social networks
  • social network with one particular constraint:
    • authors must be linked via co-authorship

Leveraging BibTeX

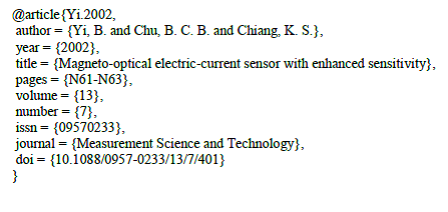

some example BibTeX

  • database of citations
  • BibTeX is the interchange format
    • read/write citations
    • compatible with everything
      • R
      • Python
      • LaTeX
    • ugly, but good enough
  • my Zotero library consists of \(n \approx\) 2500 citations
    • autoexport plugin syncs a .bib file

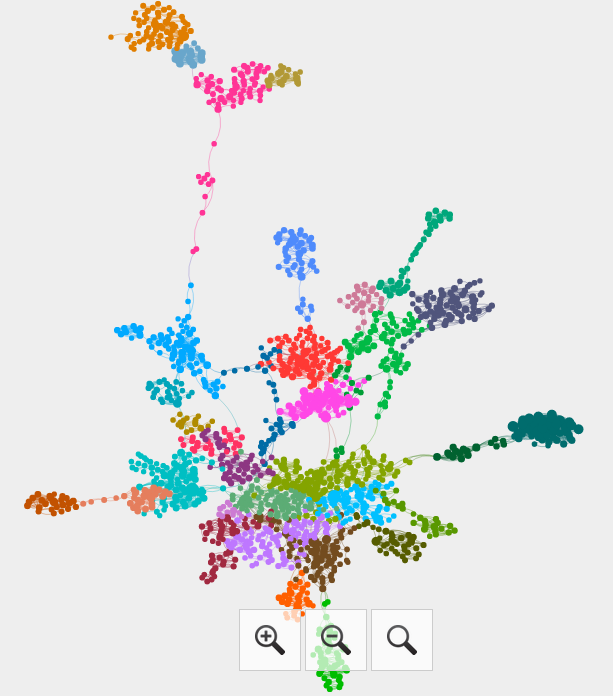

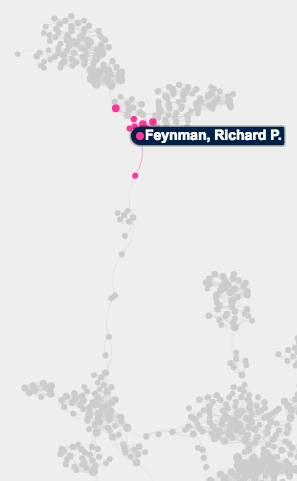

Visualizing the network

  • identify the largest component
    • \(n_{authors} = 1574\)
    • \(n_{edges} = 4905\)
  • look at 2nd-largest component for authors who are missing a link
    • library is curated, not randomly sampled
  • calculate modularity (stochastic) to identify communities
    • \(n_{communities} = 34\)


The missing link?

  • situated myself in the citation graph
  • citation data "in the wild" are very poor quality
  • the communities (detected by modularity) seem plausible
  • some communities resisted collaboration
    • Royal Society
    • US and UK WWII computer scientists
    • CS and Psychology sides of AI
  • von Neumann is very distantly connected to Lewin's students
    • Lewin's death may have dashed any chances of a collaboration


a brief interlude on the subject of online scholarship

What is publication?

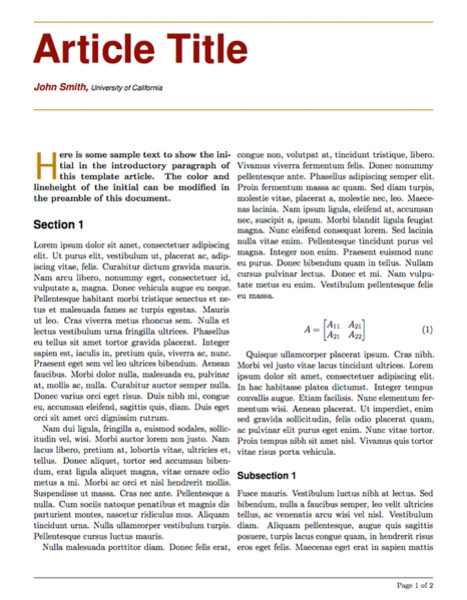

an article

  • publication in 2016, that is
  • where do you publish?
  • where do you find articles?
  • pub2: a system for self-publishing
    • all you need is a PDF and a .bib file that links to it

Where do you publish?

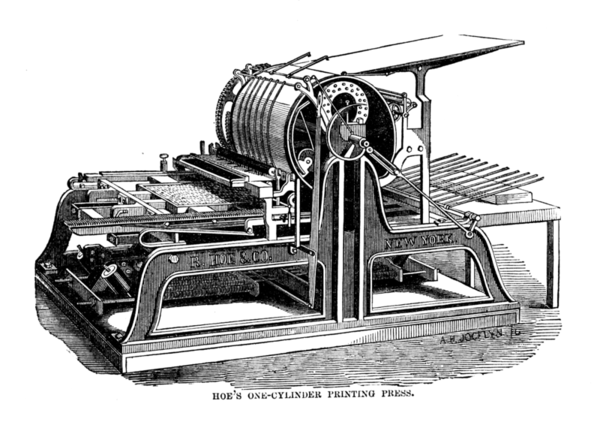

Hoe's one cylidner printing press

  • books
  • conferences
    • proceedings
    • presentations
  • journals
    • science-wide
    • discipline-specific
  • pre-publication:
    • arXiv
    • SSRN
    • fooXiv
  • self-publication??

Where do you find articles?

Bibliothek St. Florian

  • citeseer/citeulike/worldcat
  • pubmed/government portal
  • publisher search (ha!)
  • open journals
  • university or public library
  • Google scholar
    • warning: you will be rate-limited



  • goal: get BibTeX indexed by Google Scholar
  • digital object identifier?
  • serve it yourself. Google don't care
  • archival format
    • HTML?
    • PDF
  • pub2 is a system for making this realistic

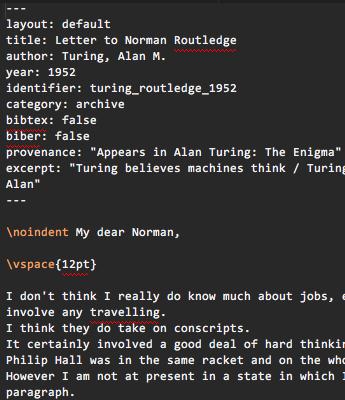

pub2 example source

  • like Jekyll (static site generator) for PDFs
    • generates PDF and .bib file that links to PDF
    • simple LaTeX isn't so different from Markdown
    • YAML preamble/templating like Jekyll
    • actually sits on top of an existing Jekyll install
  • more info


human behaviour, viral phenomena, and social simulation


The meme that started it all

  • this is where my research started in 2011
  • Dawkins (1976): cultural replicator
  • viral: in epidemic modelling, when there is faster infection than recovery
  • image macro: the style of meme consisting of a background picture and inset captions
  • memes have been used in psychological research for decades
    • “a method in which greeting cards are used to examine how parents communicate with their children” (Cacioppo & Andersen, 1981)

What is memelab?

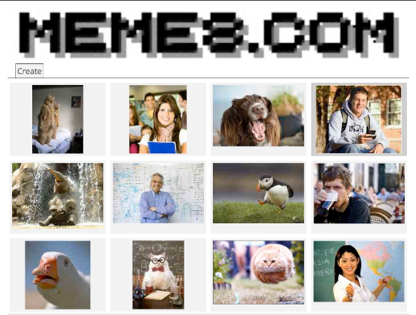

Meme choice screen on

  • online behavioural laboratory
  • software on a web server
  • clone of other meme creator websites (ecology)
  • formerly, was only at

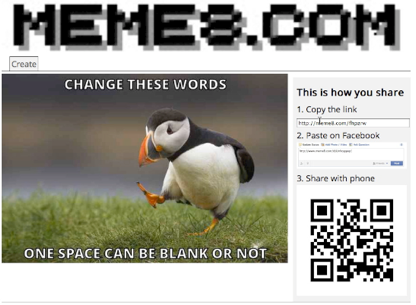

Sharing screen on

  • participants use memelab to create sharable memes in the lab (after survey)
  • memelab hosts the images with a unique URL
  • any time an image is viewed by an online user, this is logged as a “hit.”



  • participants
    • UTSC undergrads
    • n=118 participants
    • each participant created 2 memes (total = 236)
    • 50% had created memes before study
  • Demo
    • pick a background picture
    • put words at the top and bottom of the picture
    • use sharing interface so friends can see meme

Usage of

A meme created in the study

The IC building is out at UTSC

Cumulative Hits

Cumulative hits for all memes plotted daily, over time

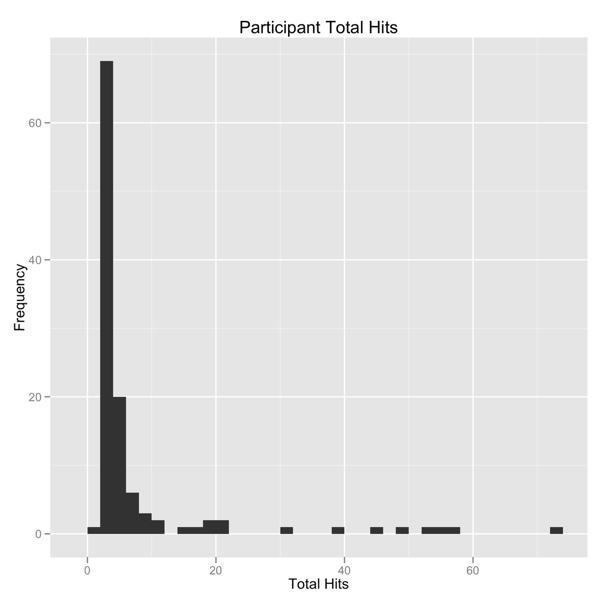

Hits per meme

Hits per meme. Outliers are interesting.

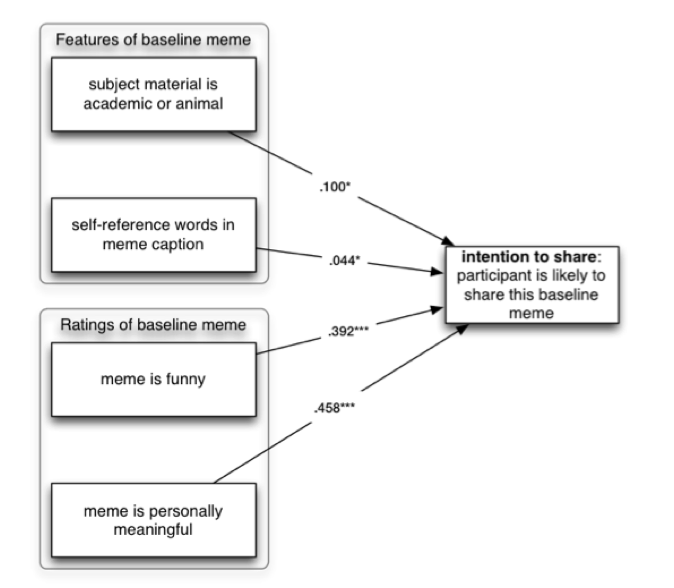

Model: intention to share

This is a linear model displayed graphically

  • model incorporates features of the content
    • boolean values
    • subject: the meme is academic or not (in this study: animal)
    • language: the meme caption includes self-reference words or not
  • model also incorporates ratings
    • meme is funny
    • personally meaningful

Convert to S-I-R model

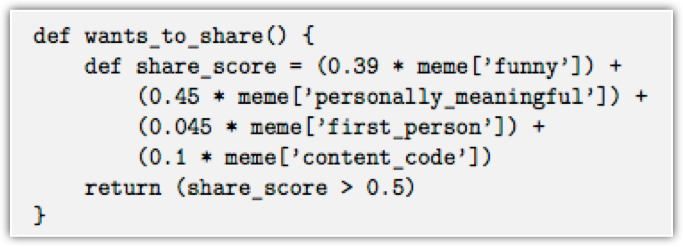

Regression function

  • SIR in Agent-Based Modelling
    • Susceptible
    • Infected
    • Recovered
  • use slopes from linear model.
  • use gaussian noise to create a distribution of random memes.
  • threshold (0.5) makes the function into a "trigger" that can lead to infection.

The simulation algorithm

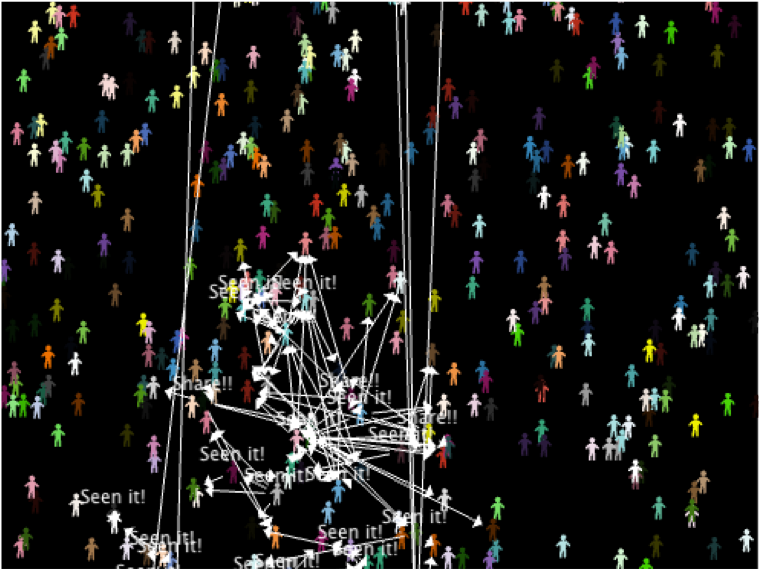

Simulation zoomed detail

  • At each time “tick”
  • the experiment wanders the space
  • and recruits any agents who happen to be in the vicinity.
  • Recruited agents create a meme (based on gaussian noise)
  • and those agents share with a probability determined by the regression function.
  • Infections signified by agent remarking, “Seen it.” An edge arrow tracks infection.

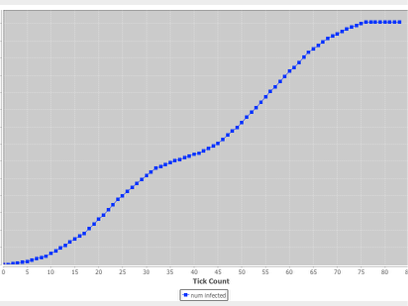

example run of Repast simulation

Simulation results, compared


Geometric roof

  • behavioural data from participants
  • model of intention to share
  • "ported" sharing model to an agent-based model
  • run simulation and obtained similar results


individuals, group influence, and political memes


Toronto City Hall

  • a hash tag is used to channel tweets towards interested audiences
  • topoli = toronto politics
  • #topoli used to discuss municipal politics related to Toronto.
  • analogous hashtags #onpoli and #capoli

Twitter sample

The bird

  • observed 1,276,077 tweets between Nov 2013 - January 2015
  • 832,889 imported so far
  • 474,831 original (non-retweet) tweets
  • 82,874 agents have been observed tweeting

Where are they?

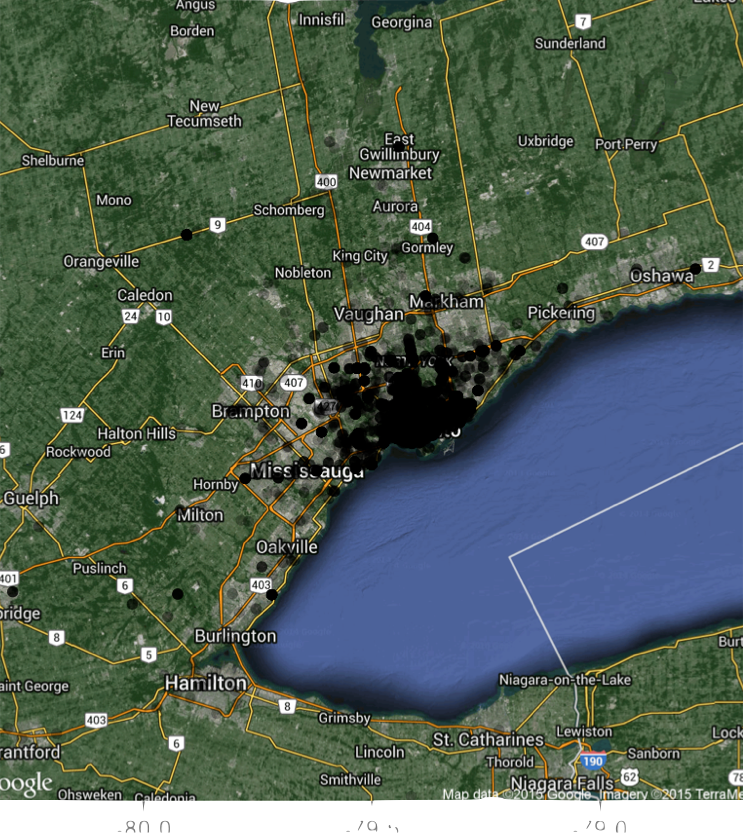

topoli participants are in Toronto

  • of the 82,874 participating, 52,517 (63%) reported some location information
  • of the 52,517 who reported something:
    • 15,752 (30%) included “toronto” in location
    • 8,420 (16%) included “canada” in location
  • but the GPS speaks for itself

topoli in 3-gram phrases

panning for gold

  • frequency minus “stopwords”
    • looking forward to
    • mayor of toronto
    • toronto mayoral race
    • city of toronto
    • this is the
  • pointwise mutual information (PMI)
    • the gravy train
    • the island airport
    • little red apples
    • a speedy recovery
    • the shirtless jogger

method for selecting n-grams

panning for gold

  • only original tweets
  • remove retweets (which inflate n-gram frequency)
  • PMI is like chi-square
  • how often did we observe the n-gram versus expected number of observations
  • results: the n-grams that are co-original (not duplicates)

Clique detection

Well-connected Accounts

  • I chose a random walk-based approach
  • pick a random person from the network
  • randomly pick someone they follow; repeat
  • if people are connected within n steps, they are in a community
  • run this thousands of times

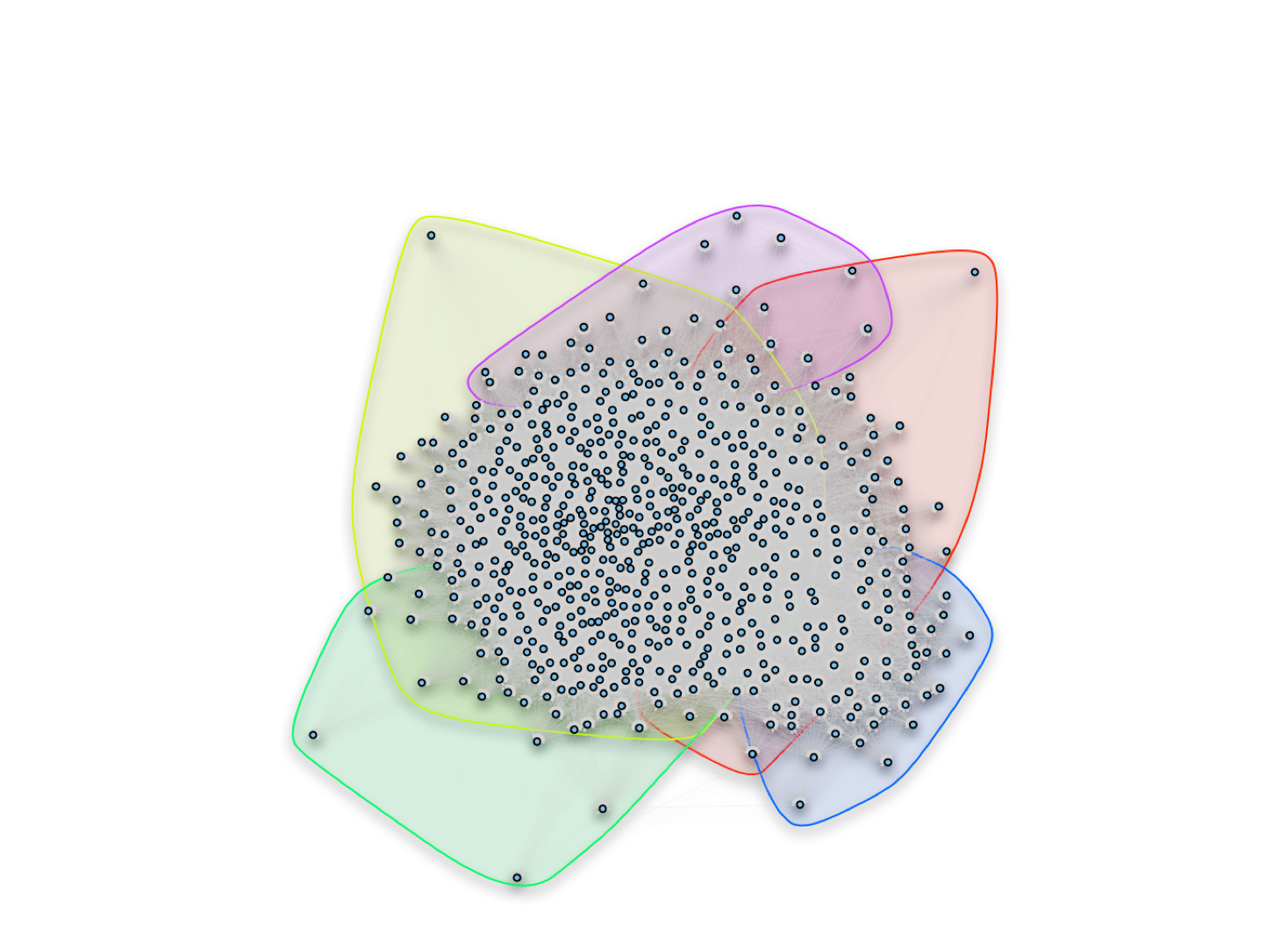

Well-connected Twitter Accounts

Well-connected Accounts

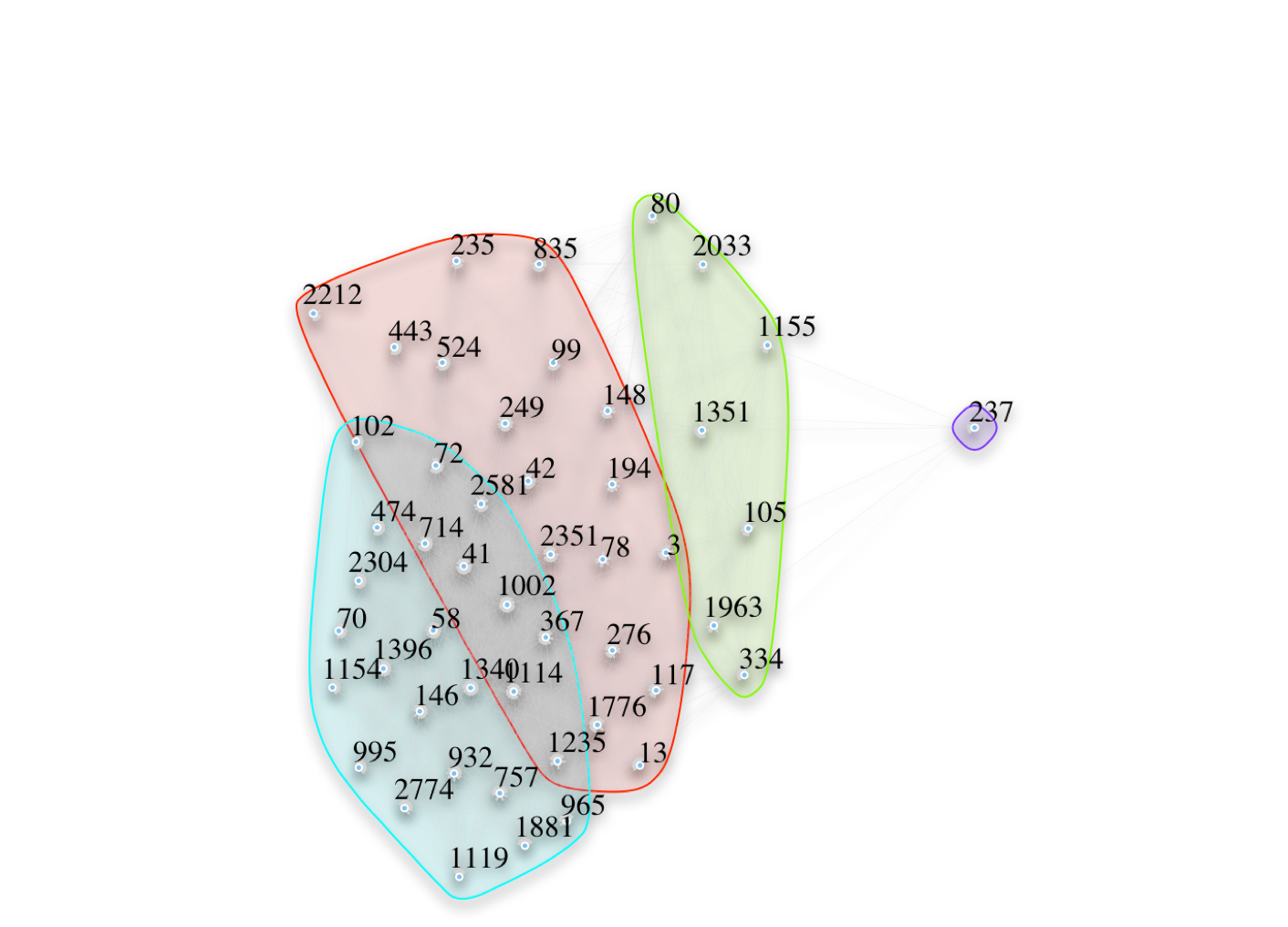

Even better-connected accounts

Basically, celebrities

Skimming over the results…


  • meme content is predictive of retweets
  • knowing an individual’s group provides a better prediction of meme propagation than meme content alone
  • better communities may yield better model fit
  • evidence that individuals differ in their unique abilities to harness memes towards retweets


Geometric roof

  • social network analysis serves to organize a huge amount of social data
  • potential memes can be identified by extracting n-grams from original tweets, and it explains some variance in retweets
  • “cliques” can be identified according to who is more closely connected with whom
  • each meme is unique, and individuals differ in their ability to successfully tweet a meme.


The Rob Ford social network

The mystery of the pixellated faces

Ford at Windsor Rd

  • this picture surfaced in the wake of the Rob Ford crack video
  • “who are these guys?”
  • every kid in the picture has been the victim of a murder attempt (one successful)
  • just the start of Rob Ford’s shady connections

Free data

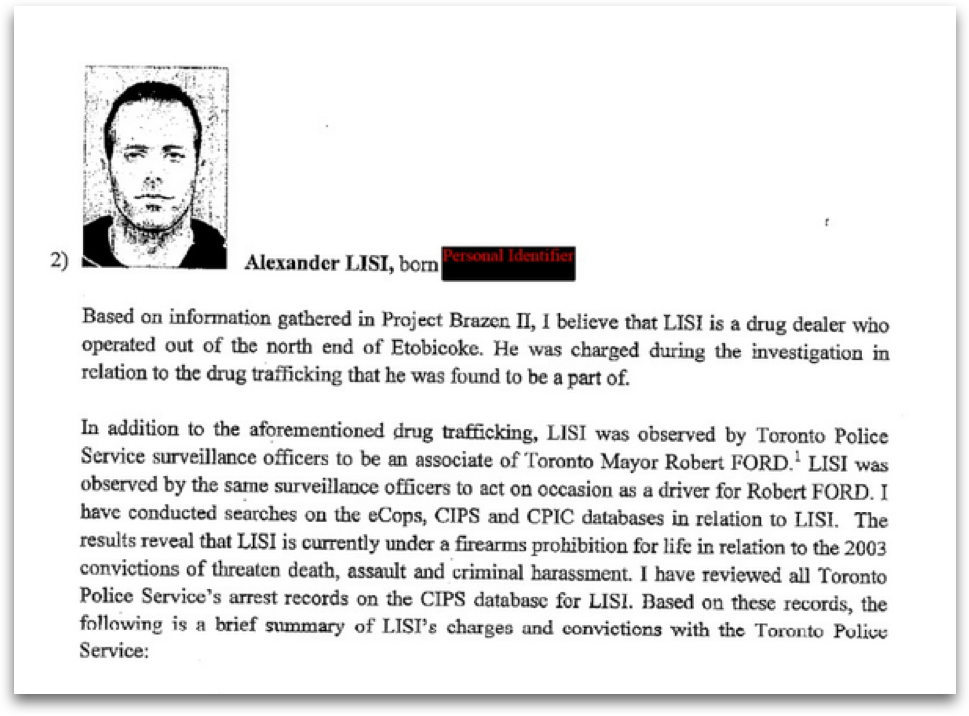

Lisi ITO

  • the police happened to be collecting data for us (names, places, times, etc)
  • a golden opportunity to explore social network analysis
  • dossier:
    • people
    • locations
    • associations

Modelling the Situation

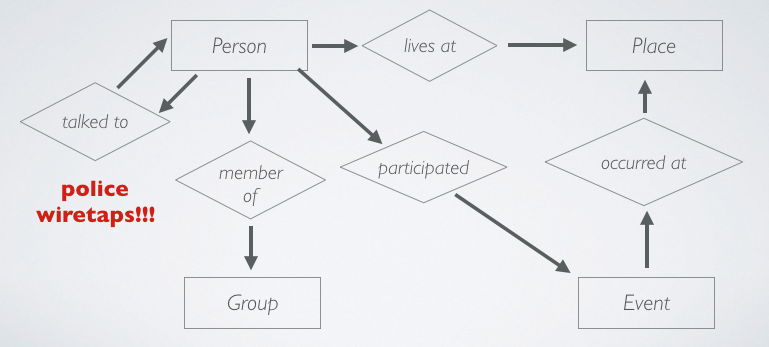

Entity Relationship Diagram

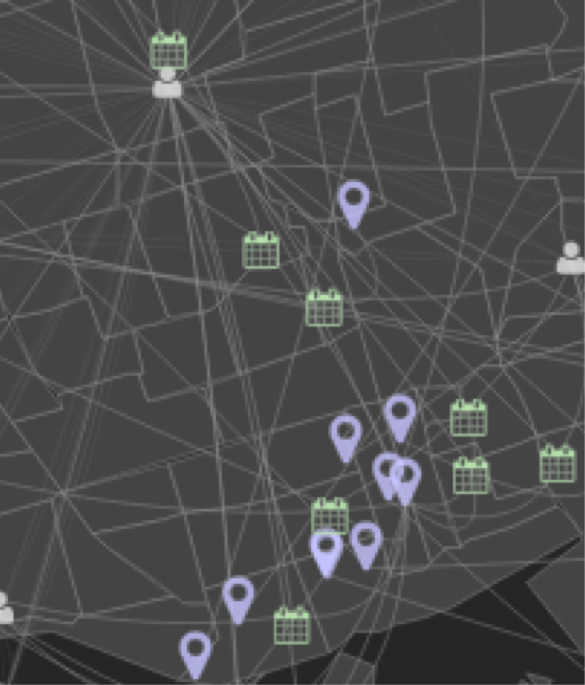

Network detail

  • load the web UI
  • zoom in on Rob Ford
  • follow the graph
    • link by event
    • link by group
    • etc…

Web UI

Network detail

  • custom online viewer unpacks the social network from the coded data
    • d3.js
    • Python Flask-Diamond backend
  • Fruchterman-Reingold layout places connected people closer; repels distant people
  • locations attract connected people as well


Geometric roof

  • the original police reports are not as expressive as the network browser
  • The rofo project permits the visual exploration of narratives
  • correct social network layout algorithm facilitates the narrative
  • we can’t conclude anything about the people involved
    • …but sometimes there aren't too many hops!

Urban Legends

Network topology affects meme transmission

Urban legends


  • urban legends are subject to emotional selection (Heath et al, 2001)
  • disgust, a high arousal negative emotion, was shown to predict sharing likelihood (Eriksson and Coultas, 2014)
  • replicate Eriksson and Coultas, 2014 with a simulation
  • explore scenarios beyond what was tested in the lab

Lab replication

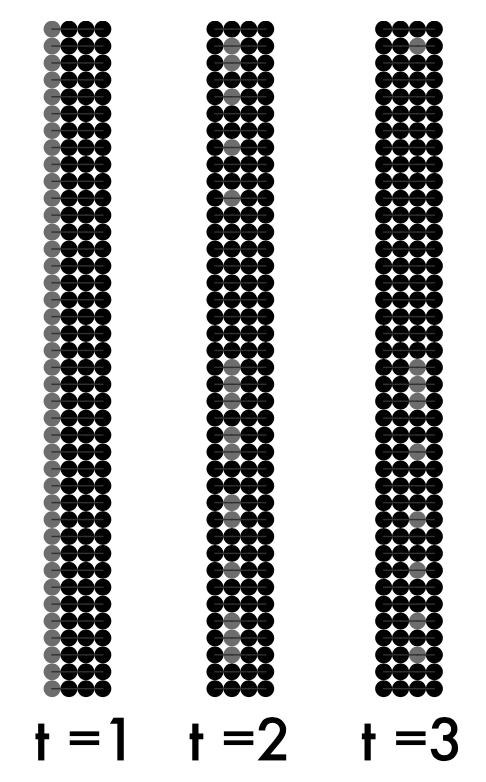

Replicate lab topology

  • serial transmission paradigm
    • participants are linked into chains
  • topology
    • 160 agents
    • 40 transmission chains
    • 4 agents per chain
    • 3 time steps
  • disgusting legends are shared so infrequently that in practice, the 4th participants rarely receives anything.
  • follow-up study: does it help to have 100x more agents? no.

Network topology

Replicate lab topology

  • connected agents via preferential attachment
  • after 3 time steps, expected "viral" outcomes were obtained
    • agents in the 3rd step were finally receiving a good portion of memes

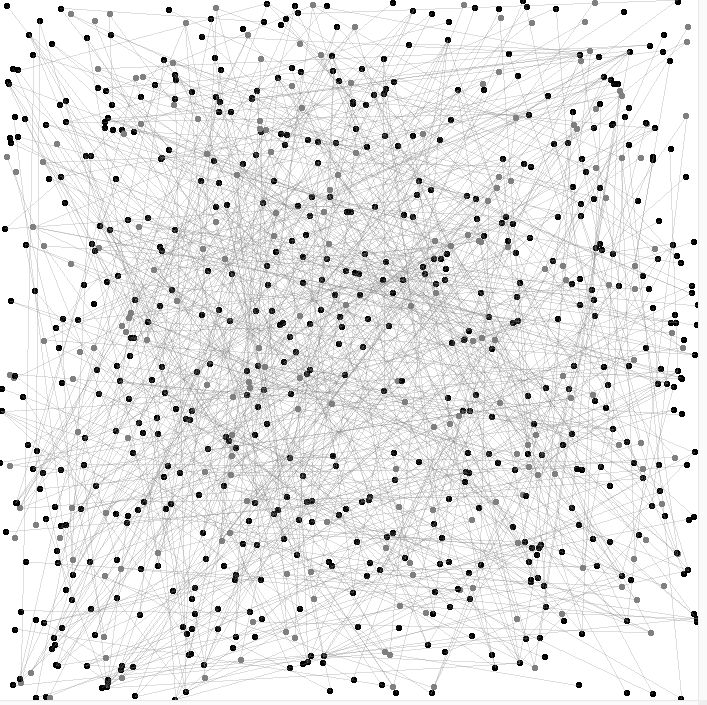

  • explored other network sizes \(n=800\) and \(n=16000\)
    • with more agents and more possible connections, even disgusting legends stay alive


Geometric roof

  • lab studies can provide valuable models of behaviour
    • even if the lab study is implausible
    • even if it does not perform "correctly" out of context
  • models can be transplanted from the literature into agent-based simulations
  • a model can be "ported" from an unfavourable context to a more plausible environment


the influence of Individuals and Organizations in open source software

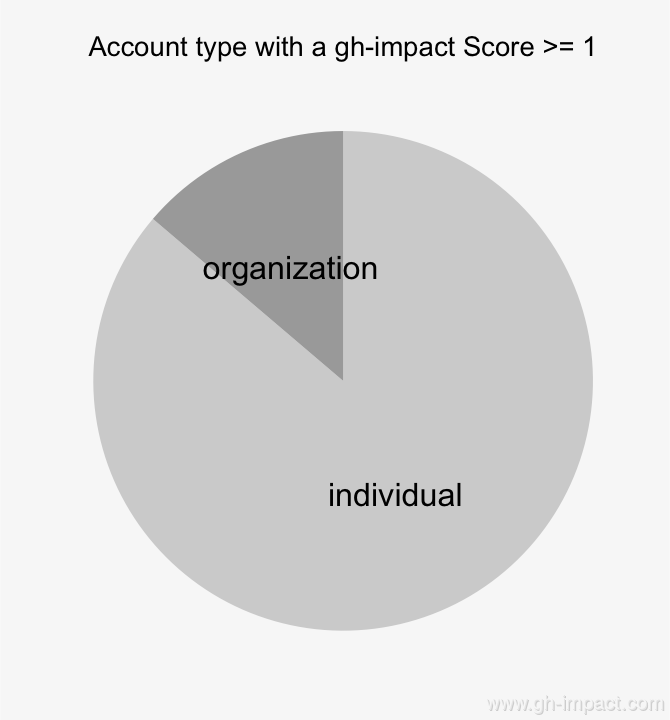

Percent of accounts belonging to Organizations

  • What is gh-impact?
  • Where does gh-impact come from?
  • Who does gh-impact apply to?
  • Why does gh-impact matter?
  • How can I use gh-impact?

What is gh-impact?


  • gh-impact is a measure of influence on GitHub.
  • Accounts that publish lots of popular projects will have higher gh-impact scores.
  • captures breadth and depth of project use on GitHub
  • gh-impact score is n if there are n projects with n stars
    • ex: 1, 1, 1 = 1
    • ex: 1, 2, 3 = 2
  • "gh" stands for "good & hot"

Where does gh-impact come from?

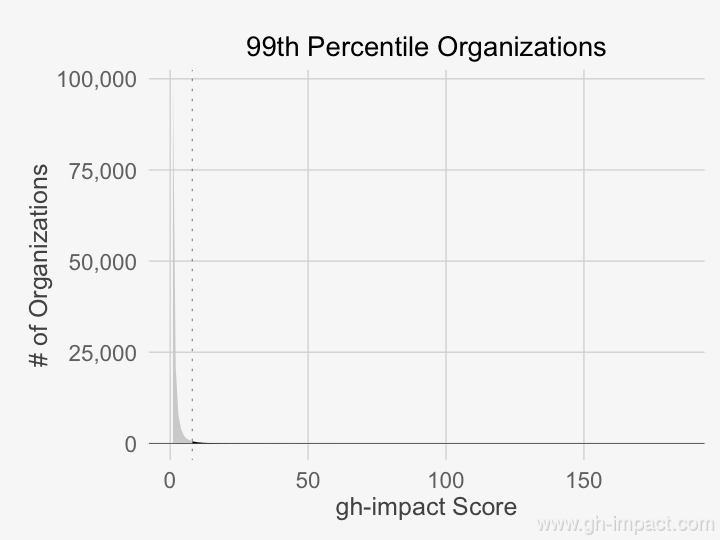

99th Percentile Organizations

  • related to academic citation analysis ("bibliometrics")
  • GitHub public data API
  • GHTorrent data dumps
  • own custom statistics pipeline

Who does gh-impact apply to?

Individuals vs Organizations

  • all accounts on GitHub
  • individuals and organizations
  • must have at least one star to have a gh-impact score
  • not just software: websites, curation, science …

Why does gh-impact matter?

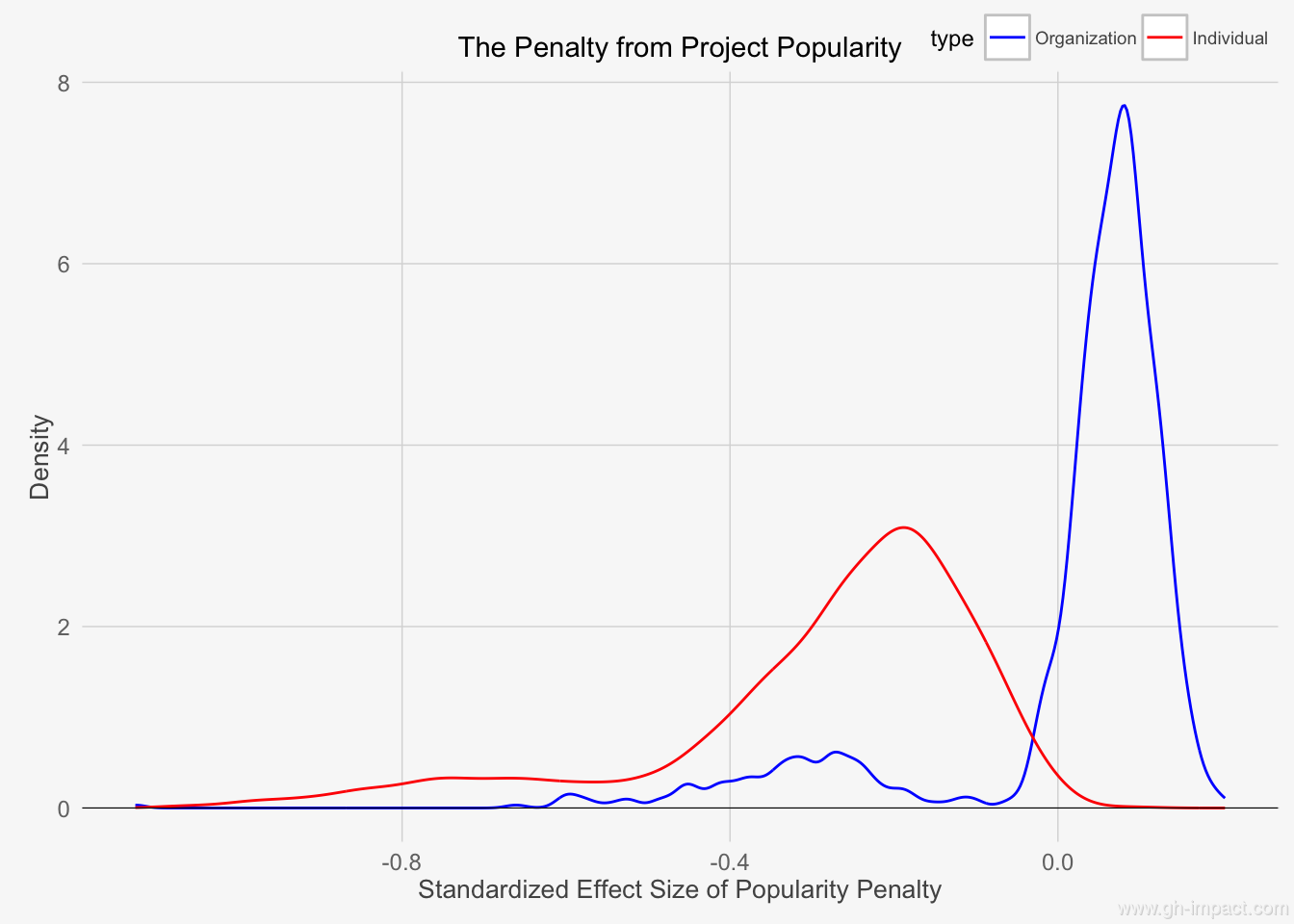

Organizations can scale up

  • assess productive output of accounts
  • get credit for open source work (e.g. academics)
  • gh-impact is a key metric for developing other analyses
  • intelligence about open source software

How can I use gh-impact?

in Collective Intelligence proceedings

  • search: gh-impact scores for over 1.1 million accounts
  • analysis: results from ongoing statistical analysis are regularly posted
  • open data: download raw JSON from GitHub


The future, figuratively

  • gh-impact is a measure of influence on GitHub
  • similar to how influence is measured in academia
  • describes both individual and organization GitHub accounts
  • gain intelligence about open source software
  • search, analysis, and data on

Election Memes

2016 US presidential candidates and the memes about them



  • we are approaching US election day
  • 4 platforms:
    • twitter
    • instagram
    • imgur
    • facebook
  • about 38,000 memes
  • collected by a meme aggregator called Sizzle
  • interesting data: total number of likes

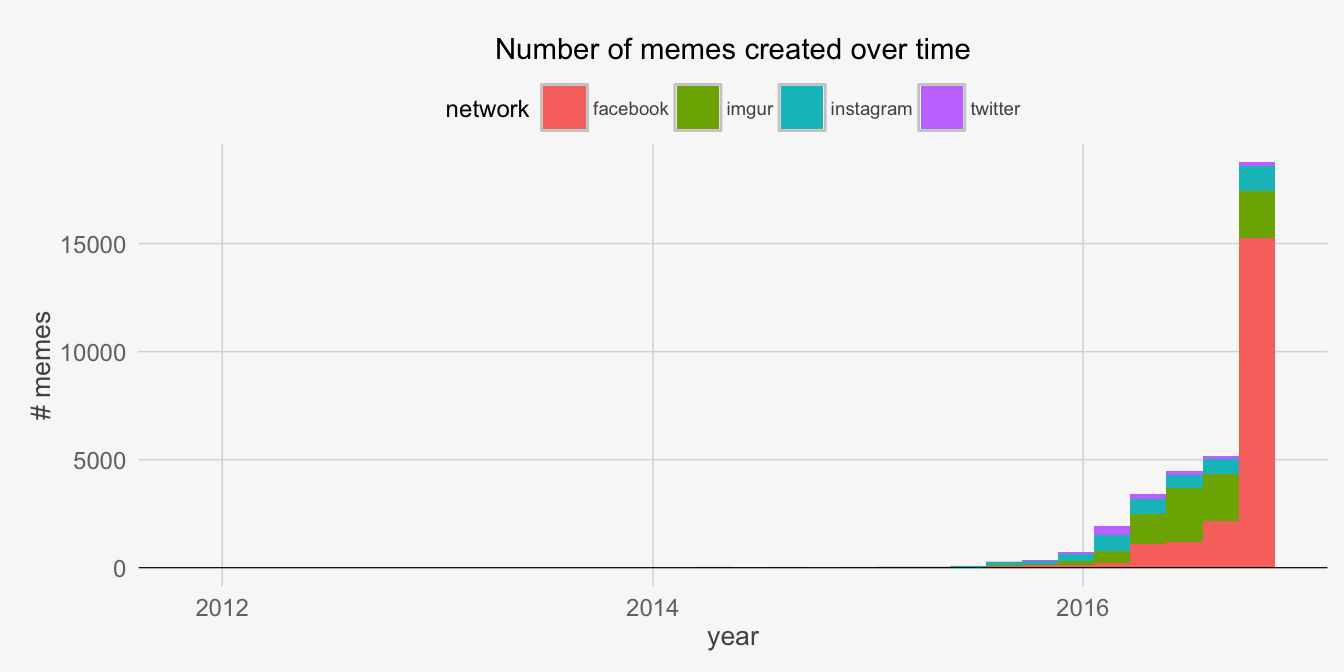

Date Range

Attention ramps up as we approach the big day

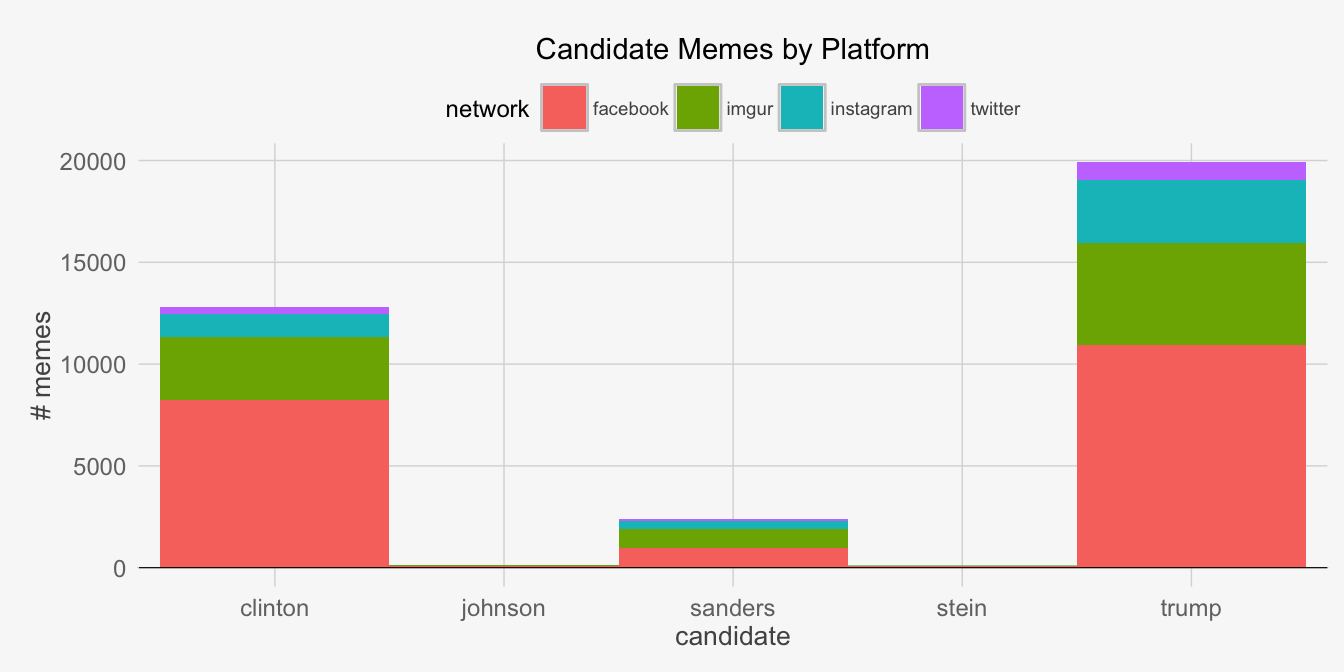

Memes per Candidate by Network

Networks do not appear to be used evenly

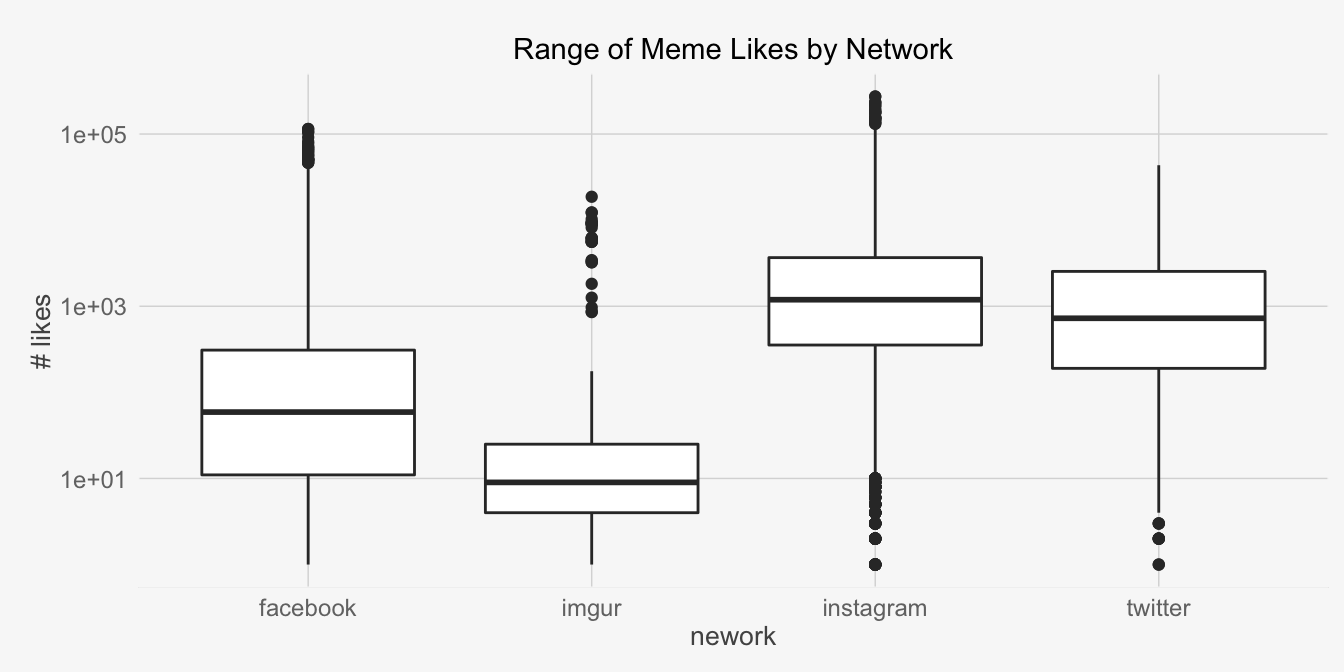

Standardizing between networks

The networks are not the same

Candidates attention over time

The scores vary over time

The photo finish?



A computer simulation of the human population

Ever-larger samples

Earth seen from Apollo 17

  • this can only go so far
  • eventually, you hit 7.2 billion
  • for Humans, there is no larger sample
  • for Social Psychologists, there is but one population
    • \(n \approx 7.2B\)

Simulacrum as a Service

Selecting one agent at random

  • are we living inside a simulation?
  • Moravec, Bostrom, and others raise the possibility
  • I have set out to demonstrate that a simulacrum may be created
    • …so long as we can tolerate some error
  • the result is
    • web service
    • \(n \approx 7.2B\)

Results are available as JSON

  • enables agent based modelling in varying social and geopolitical contexts
  • Supports:
    • netlogo
    • MASON
    • R
    • LISP (so: ACT-R, others)
  • an analogy for netlogo users
    • Agent : AgentSpace ::
    • Behavior : BehaviorSpace

The actual API

This table appears in the article.

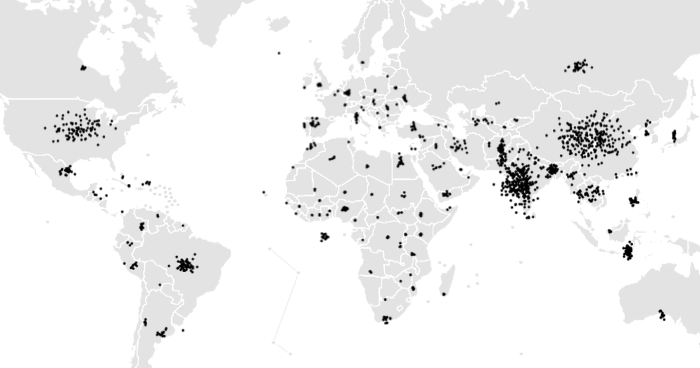

Global distribution of people

MASON simulation. Some countries are not "right" yet.

Global Internet access

Sampled of Internet access by country

Comparing pplapi to Census data

Age in US: Census and Simulation


Age in US: Census and Simulation

  • clearly not fully accurate
    • in the ballpark
  • partly constrained by data
  • implications for identity, privacy
    • data are simulated, not real
    • however, imagine they were real
    • …and isn't that likely, given the rate of information disclosures?


Geometric roof

  • Simulacrum as a Service
    • certain caveats apply
  • plugs in with many existing modelling frameworks
    • examples in several languages: netlogo, mason, R
  • you can actually experiment with
    • rate limited, but otherwise open
  • actively using pplapi on several social projects


A few last things

Revisiting the Macy Conferences

Serpiente alquimica / Ouroboros

  • What if Lewin's ideas had found a home among AI researchers?
  • Recall Field Theory for one person: \(B = f(P, S)\)
  • behaviour is a function of the person and the situation
    • I can derive model functions from empirical data or from the literature
    • I have the set of all people with pplapi
    • I can calculate behaviour as a property of my simulation
    • situation changes as in response to behaviour, so this is also a property of the simulation
  • altogether, this is a new justification for computational social psychology


Itinerary by Matthew Paris ca. 1250-1259

  • social psychology meets artificial intelligence
  • pub2: self publishing
  • memelab: meme sharing
  • topoli: twitter political memes
  • rofo: Rob Ford social network
  • urban legends: memes and network topologies
  • gh-impact: influence in open source software
  • election-memes: 2016 US election memes
  • pplapi: human simulacrum as a service


the end

  • a wide range of social phenomena can be explored with agent-based modelling
  • networks are a powerful too for organizing and utilizing relationships
  • memes are an excellent unit of analysis. simultaneously:
    • a coherent concept that is meaningful to humans
    • a chunk of data that can be quantified and tracked
  • Field Theory was the conceptual bridge between these disciplines
  • My current work is called Iterated Field Theory

Thank you
